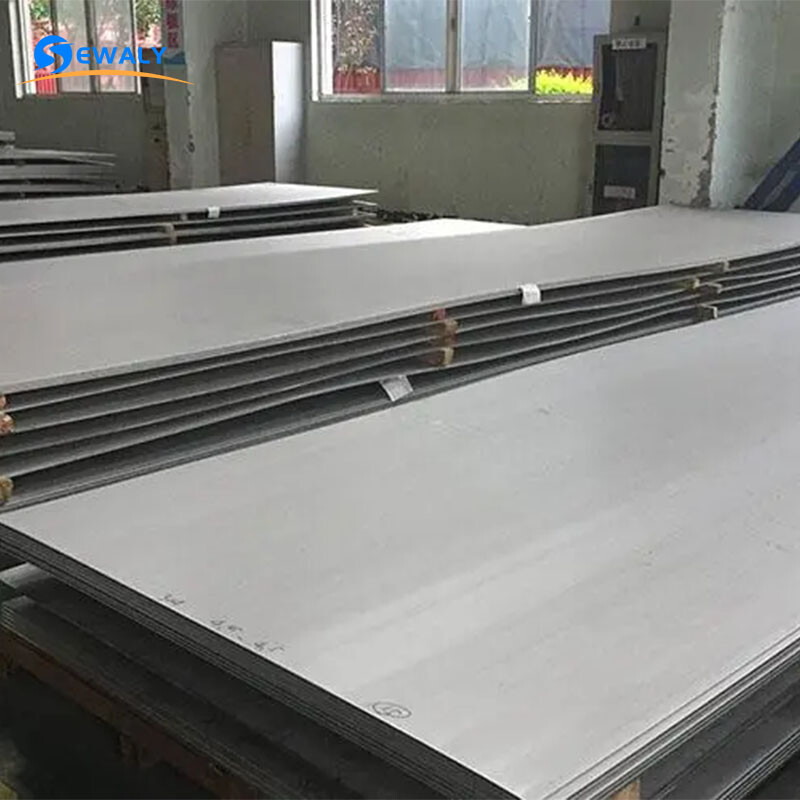

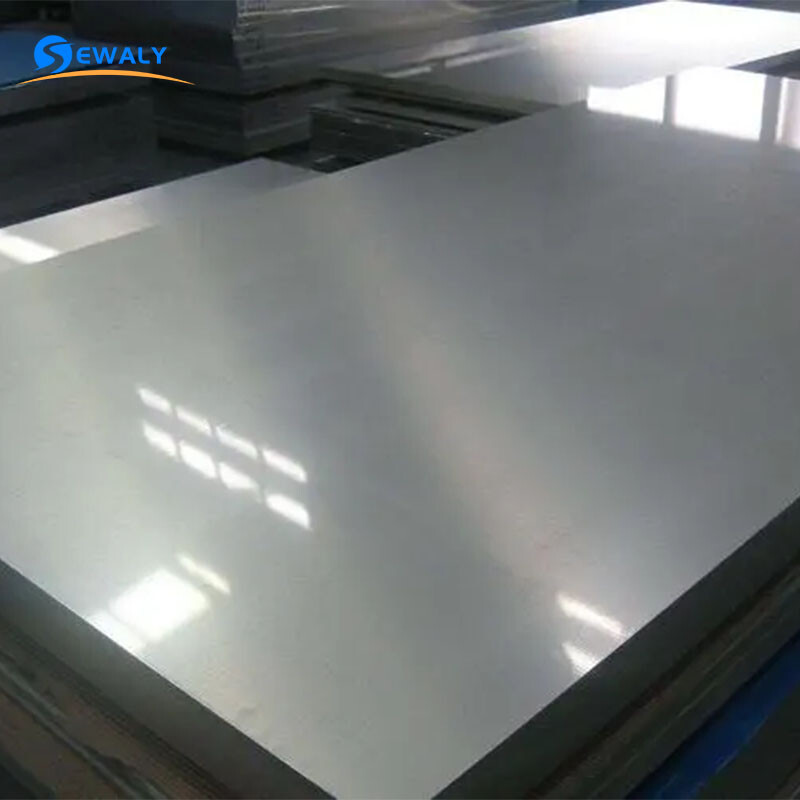

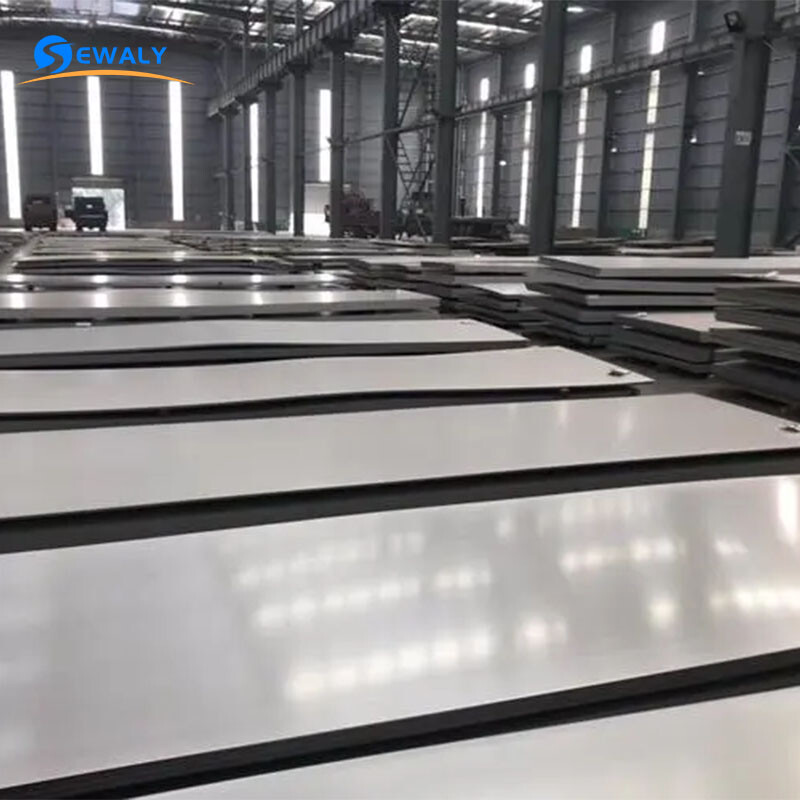

316L Stainless Steel Sheet

‹

›

‹

  • 316L Stainless Steel Sheet
  • 316L Stainless Steel Sheet
  • 316L Stainless Steel Sheet
  • 316L Stainless Steel Sheet

›

316L Stainless Steel Sheet

Introduction：
1. Low MOQ and Flexible Production Ability.
2. Quick delivery and standard industry exporting package.
3. Best service with quick  reply
4. OEM and ODM, welcome customers to visit our factory for better understanding;
5. Value friendship and trustworthy, devote to provide long-term service to our distinguished customers.

Inquiry
Contact us

Product Introduction


Grade 316L is very similar to 316 stainless steel. It is still considered a molybdenum-bearing grade and has properties that make it highly resistant to corrosive degradation. 316L grade stainless steel differs from 316 in that contain lower levels of carbon. The decreased level of carbon in this stainless steel makes this grade immune from sensitisation or grain boundary carbide precipitation. Because of this unique property, Grade 316L tends to be commonly used in heavy gauge welding situations.  Additionally, the lower carbon levels make this grade easier to machine. Like 316 stainless steel, 316L because of its austenitic structure is extremely tough, even in the most extreme of temperatures.



Chemical Formula

Carbon .03%, Manganese 2.00%, Phosphorus .045%, Sulfur .030%, Silicon .75%, Chromium 16-18.00%, Nickel 10.00-14.00%, Molybdenum 2.00-3.00%, Nitrogen-.10%, Iron- Balanced


Standard Specification Of 316 Stainless Steel Plate

ItemStainless Steel 316L Plate(Hot   rolled, cold rolled)
StandardASTM A240, JIS4304-2005, ASTM   A167, EN10088-2-2005, GB/T3280-2007, etc
GradeASTM A240 Grade 316L
TypeASTM A240 Type 316L Plate, Sheet,   Strip, Coils, Foils, Flats, Clad Plate, Plain Sheet, Rolling Sheet, Rolling   Plate, Flat Shim, Flat Sheet, Shim Sheet, Rolls, Blank (Circle), sheared,   annealed, soft annealed, descaled, tread plate, Checker Plate
MaterialAisi SS 316L Sheet, Aisi 316L   Sheet, Aisi 316L Stainless Steel Sheet, 316L SS Sheet, Alloy 316L Sheet,   Alloy 316L Sheet, Ams 5599 Sheet, Ams 5599 Plate, AMS 5507 Sheet, Sae Ams   5507 Sheet, 316L Ams 5507 Sheet, AMS 5869 Sheet, AMS 5648 Sheet, Aisi 316L   Ams 5648 Sheet, 316L Ams 5648 Sheet, Stainless Steel 316L / 316L Sheet, AMS   5507 Sheet, Sae Ams 5507 Sheet, Ams 5507 Stainless Steel Sheet, 316L Ams 5507   Sheet, Aisi 316L Ams 5507 Sheet, Cres 316L Ams 5507 Sheet, 316L Stainless   Steel Sheet
ASTM A240 Stainless Steel 316L   Plate Length0-12mm or as required
SS UNS S31603 Plate Width0-2500mm or as required
Stainless Steel 316L Hot Rolled   Plate Thickness0.3 to 1200 mm or as required
ASME SA240 Stainless Steel 316L   Plate ProcessHot/ Cold Rolled
Brand NameBaosteel, Outokumpu, POSCO,   Thyssenkrup, Sail, Acerinox, TISCO, Aperam, Jindal Stainless, Nas, DKC Korea,   Arcelor Mittal, Nippon Metal
OriginIndian Origin, European Origin,   Japanese Origin, US Origin, Korea Origin, Thailand Origin, Taiwan Origin
FinishHot rolled plate (HR), Cold rolled   sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
ASTM A240 Stainless Steel 316L   Plate surfaceNo.1, No. 2D, No. 2B, BA, No.3,   No.4, No.6, No.7, 2B, 2D, BA NO(8), Cold rolled sheet (CR), Hot rolled plate   (HR), SATIN (Met with Plastic Coated), No.1 finish hot rolled ASTM A240   Stainless Steel 316L Plate, 1D, 2B, No.4, BA, 8K, satin, hairline, brush,   mirror etc.
PackageStandard Export Seaworthy Package,   or as required.
Container20ft GP: 5898mm(length)x2352mm(width)x2393mm(high)
Size40ft GP:   12032mm(length)x2352mm(width)x2393mm(High)

40ft HC:   12032mm(length)x2352mm(width)x2698mm(high)
Price termEx-Work, FOB, CNF, CFR, CIF

Mill Test Certificate, Available   as per EN 10204 3.1
MTC


316L Stainless Steel Plate Characteristic machining technologyFeatures



l  316L Stainless Steel is easily welded by all commercial processes. If forging or hammer welding it is recommended to anneal after these processes to help avoid unwarranted corrosion.

l  Not hardenable by heat treatment, however often cold working the alloy has proven to increase hardness and tensile strength.

l  Sometimes know by industry professionals as marine grade stainless for its uncanny ability to resist pitting corrosion.


Application


Construction/Indutry/Building/Chemical/Auto

316L Grade Stainless Steel is one of the more common austenitic stainless steels. Because of its outstanding toughness against corrosion, you can typically find 316L Stainless used in the following applications: food preparation equipment, pharmaceutical, marine, boat fittings, and medical implants (i.e- orthopaedic implants)
