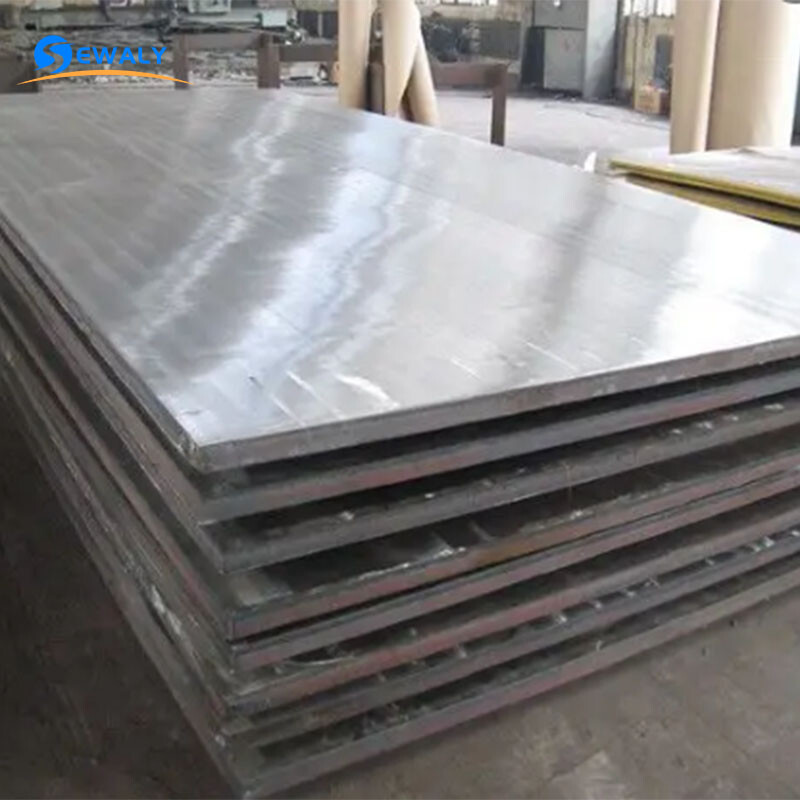

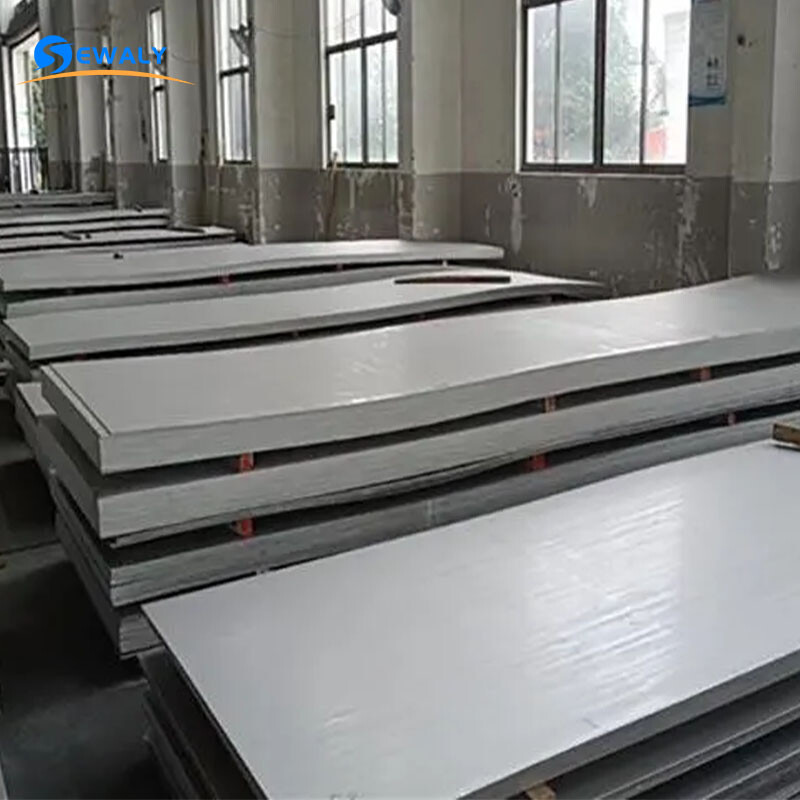

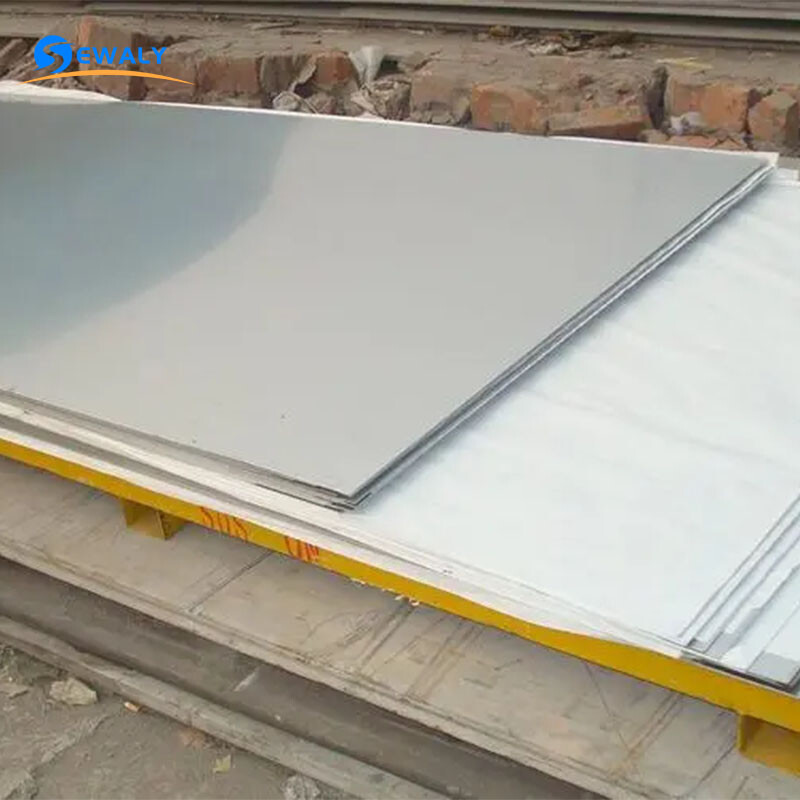

430 Stainless Steel Plate

Introduction:
1. Low MOQ and Flexible Production Ability.
2. Quick delivery and standard industry exporting package.
3. Best service with quick  reply
4. OEM and ODM, welcome customers to visit our factory for better understanding;
5. Value friendship and trustworthy, devote to provide long-term service to our distinguished customers.

Product Introduction

As a ferritic stainless steel, 430 stainless steel is categorized by its high chromium content. Ranging from 12-180, the increased levels of chromium create a grade of stainless steel that possesses good ductility and formability characteristics. It also has the ability to resist strong acid corrosion, and also because of the high chromium levels provides good resistance to oxidation.


Chemical Formula
Fe, <0.12% C, 16-18% Cr, <0.75% Ni, <1.0% Mn, <1.0% Si, <0.040% P, <0.030% S


CHEMICAL COMPOSITION:

ElementType 430
Carbon0.12 max.
Manganese1.00 max.
Sulfur0.030 max.
Phosphorus0.040 max.
Silicon1.00 max.
Chromium16.0 – 18.0
Nickel0.75 max.

MECHANICAL PROPERTIES:

TypeYield Strength 0.2% offset (KSI)Tensile Strength (KSI)% Elongation (2″ Gauge length)
430 Ann30 min.65 min.22 min

PHYSICAL PROPERTIES:

Density (lb./ in^2) @ RT
0.278
Modulus of Elasticity in Tension   (psi x 10^6)
29
Specific Heat (BTU/o F/lb.)32 to 212 oF0.11
Thermal Conductivity (BTU/hr/ft^2/ft)212oF13.8

932oF15
Mean Coefficient of Thermal   Expansion (in. x 10^-6 per o F)32 to 212oF5.7

32 to 932oF6.2
Electrical Resistivity (micro ohms   – cm)at 70oF60
Melting Point Range (oF)
2600 – 2750
Oxidation Resistance – Continuous   Service(oF)
1500

As one of the more widely used ferritic stainless steels, 430 stainless has numerous consumer as well as commercial product applications. From automotive trim, dishwashers, range hoods and flatware to oil refinery and roofing equipment, 430 can be found in a number of popular uses.


Application

Construction/Indutry/Building/Chemical/Auto

·         Linings for dish washers

·         Refrigerator cabinet panels

·         Automotive trim

·         Lashing Wire

·         Element Supports

·         Stove trim rings

·         Fasteners

·         Chimney Liners

Typical applications for 430F grade include:

·         Repetition machined components
