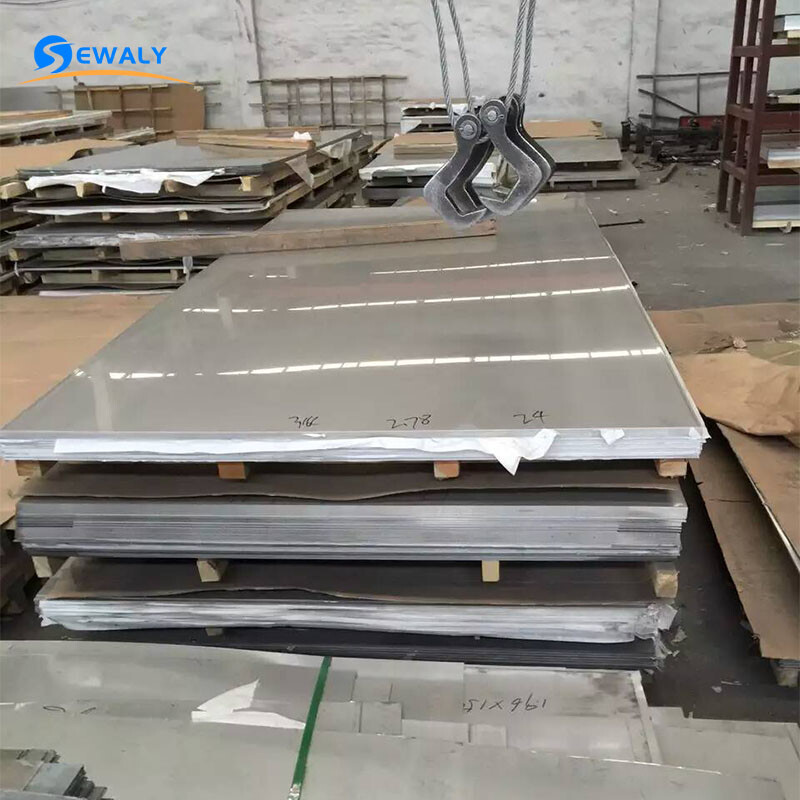

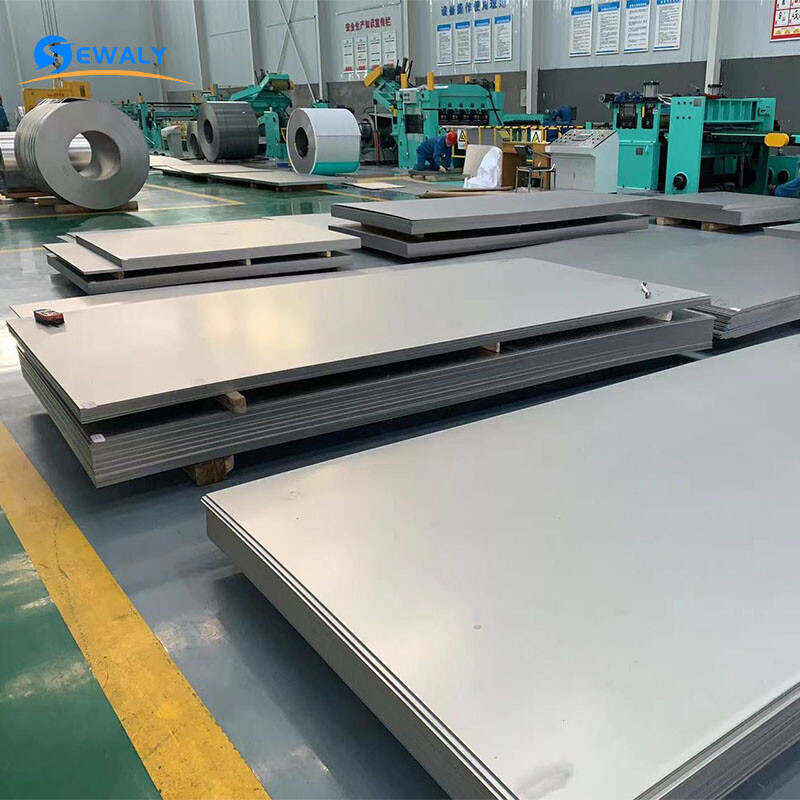

316 Stainless Steel Plate

Introduction：
1. Low MOQ and Flexible Production Ability.
2. Quick delivery and standard industry exporting package.
3. Best service with quick reply
4. OEM and ODM, welcome customers to visit our factory for better understanding;
5. Value friendship and trustworthy, devote to provide long-term service to our distinguished customers.

Inquiry

Contact us

Product Introduction

Grade 316 stainless steel has molybdenum-bearing grade making it a fair bit more resilient to corrosive abuse than Grade 304. This is especially noticeable in highly sulfuric, hydrochloric, formic and tartaric environments where pitting usually persists. 316 stainless steel is extremely versatile; not only does it have strong forming and welding characteristics, but it has the ability to fold or roll so it can be easily transformed into a number of applications. Additionally, 316 stainless steel tends to hold up better than 304 in higher temperature environments.

Chemical Formula

Carbon .08%, Manganese 2.00%, Phosphorus .045%, Sulfur .030%, Silicon .75%, Chromium 16-18.00%, Nickel 10.00-14.00%, Molybdenum 2.00-3.00%, Nitrogen-.10%, Iron- Balanced

Plate Properties Grade 316 Plate Properties

GRADE	SHAPE	THICKNESS	SPECIFICATION
316	PLATE	3/16" - 6"	AMS 5507 / ASTM A-240
316L	PLATE	3/16" - 6"	AMS 5524 / ASTM A-240

For more information, see Carbon, Alloy and Stainless Steel Plate Quick Guide

Chemistry (range or maximum in %)

GRADE	C	MN	P	S	SI	NI	CR	MO	OTHER
316	0.08	2	0.045	0.03	0.75	10.00/14.00	16.00/18.00	2	N 0.10 MAX
316L (LOW CARBON)	0.03	2	0.045	0.03	0.75	10.00/14.00	16.00/18.00	2	N 0.10 MAX

ASTM Specification	ASTM A240 / ASME SA240
Standard	MSRR, AMS, BS, ASTM A240 / ASME SA240
Length & Sizes	1000 mm x 2000 mm, 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1250mm x 2500mm, 1500mm x 3000mm to 6000mm, 2000mm x 4000mm to 6000mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm, 2m, 2.44m, 3m, 36" X 120" or 48" X 144", 4' x 8', Cut to size available
Thickness	0.1mm to 100 mm Thk
Width	10-2500mm
Hardness	Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Temper	Annealed
Condition	Polished on both sides
Finish	Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Stock in form of	Plate, Sheet, Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Clad Plate, Rolling Sheet, Flat Sheet, Rolling Plate, Flat Shim, Blank (Circle), hot rolled, cold rolled, annealed, soft annealed, descaled, sheared, tread plate, Checker Plate
Value Added Service	Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc.
Dealers & Distributor of	SAIL, ESSAR, JINDAL, TATA, BHUSHAN, INDIAN, POSCO, JISCO, TISCO, LISCO, BAOSTEEL IMPORTED material
Test Report	Raw Materials Certificate
	EN 10204/3.1B
	100% Radiography Test Report
	High special strength, high melt point
	Third Party Inspection Report, etc
	Excellent corrosive resistance, good thermal resistance
	Customer support after-sales service
	Strict Control from Raw Material to Finished
Profiling	To provide a full profiling service we use numerous profiling methods including:
	Plasma Plate Cutting
	Laser Plate Cutting
	Oxy-propane Flame Cutting
Specialized in	material under 3/16 " [5.00 mm] in thickness and 24" [600 mm] and over in width
	material 3/16" [5.00 mm] and over in thickness and over 10" [250 mm] in width
	cold-rolled material under 3/16" [5.00 mm] in thickness and under 24" [600 mm] in width
	Free Quote, Inquiry answered within 24 hours
We offer a comprehensive services designed to add value to your project: plasma cutting, waterjet cutting, laser cutting, bending and mechanical processing, edge preparation, welding, sawing and shearing.

316 Stainless Steel Plate Characteristic machining technologyFeatures

l 316 Stainless Steel is easily welded by all commercial processes. If forging or hammer welding it is recommended to anneal after these processes to help avoid unwarranted corrosion.

l Not hardenable by heat treatment, however often cold working the alloy has proven to increase hardness and tensile strength.

l Sometimes known by industry professionals as marine grade stainless for its uncanny ability to resist pitting corrosion.

l 316 can be used in applications when non-magnetic metal is required because of its unique composition.

Application

Construction/Indutry/Building/Chemical/Auto

Similar to 304 Stainless Steel, 316 Stainless is one of the more popular austenitic stainless steels. Because of its outstanding welding capabilities and toughness against corrosion, you can typically find 316 Stainless in these applications: food preparation equipment, marine, coastal architecture, boat fittings, woven screens for quarrying and water filtration, heat exchangers, jet engine parts, etc

Summary

Foshan Sewaly Steel Co., Ltd. is a large-scale comprehensive processing group mainly engaged in stainless steel coil, stainless steel strip, stainless steel plate and stainless steel pipe. We have been engaged in the stainless steel industry for 13+ years, with a monthly shipment of 5,000+ tons, a standing inventory of 15,000+ tons, and a professional team of 500+ people. The company can provide corresponding certifications according to customer requirements, such as: EN, ASTM/ASME, DIN/JUV, JIS/SUS, etc.

So far, we have the branches located in Shanghai, Jiangsu, Chengdu, Shandong, and formed a Russian team. Meanwhile, we won the first-level agent of Shanxi Taigang STSS, Fujian Hongxin Machinery Co.,Ltd., Posco Stainless Steel Co., Ltd.. The company has expanded its export business and established good cooperative relations with major foreign steel mills. Our partners include: Outokumpu Oyj, Avista Corporation, Nippon Yakin Europe Limited, ATI, JFE Steel Corporation and other companies .

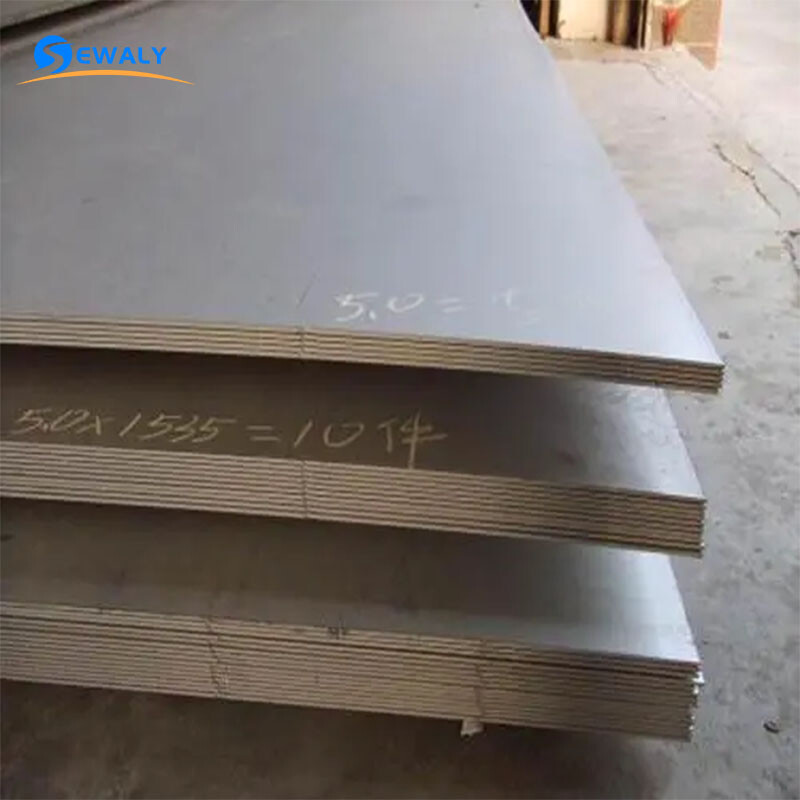

PRE：316L Stainless Steel Sheet
