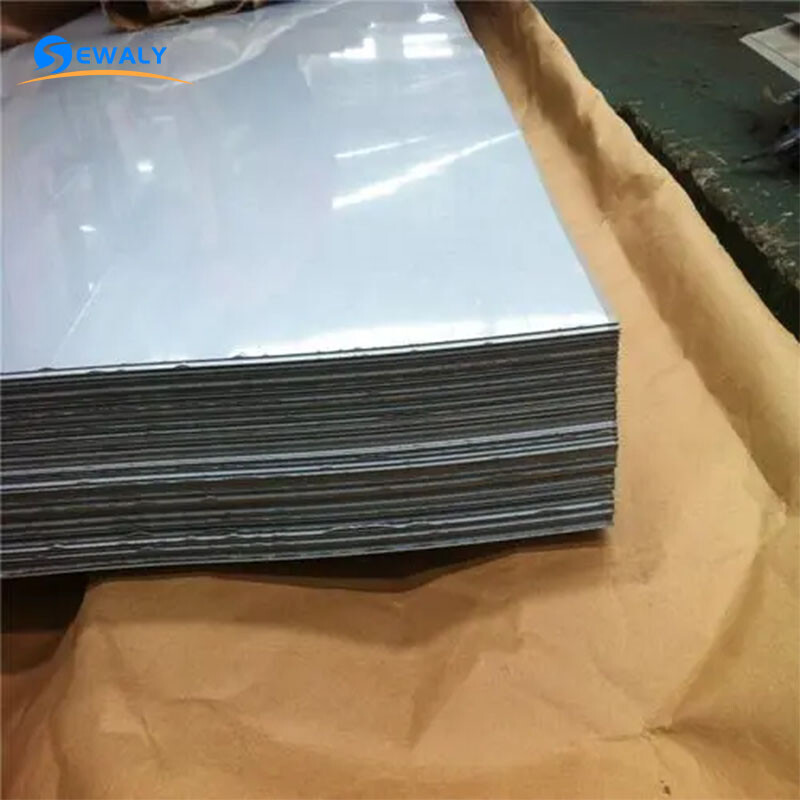

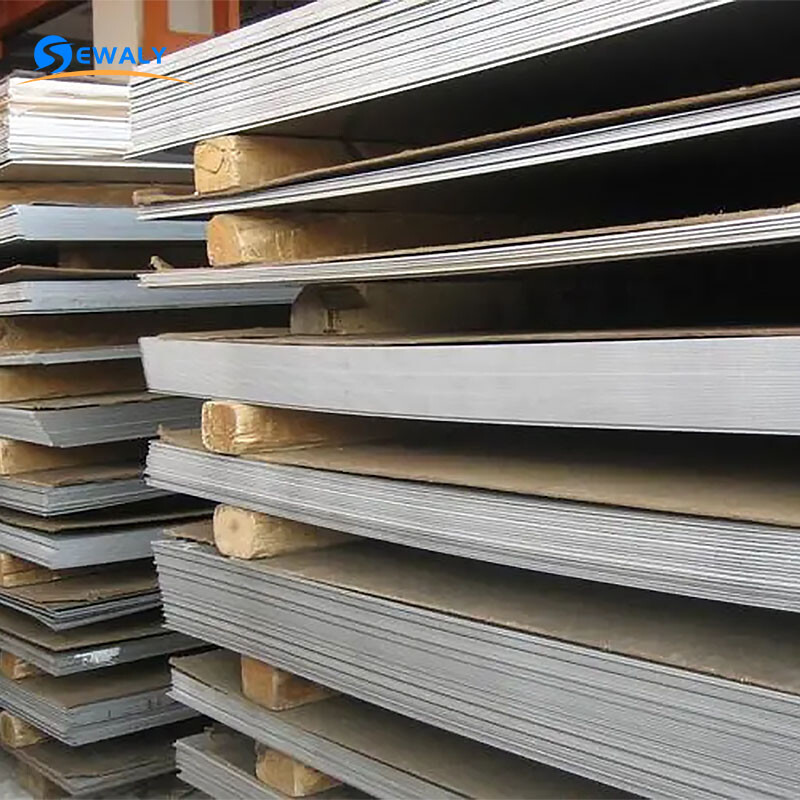

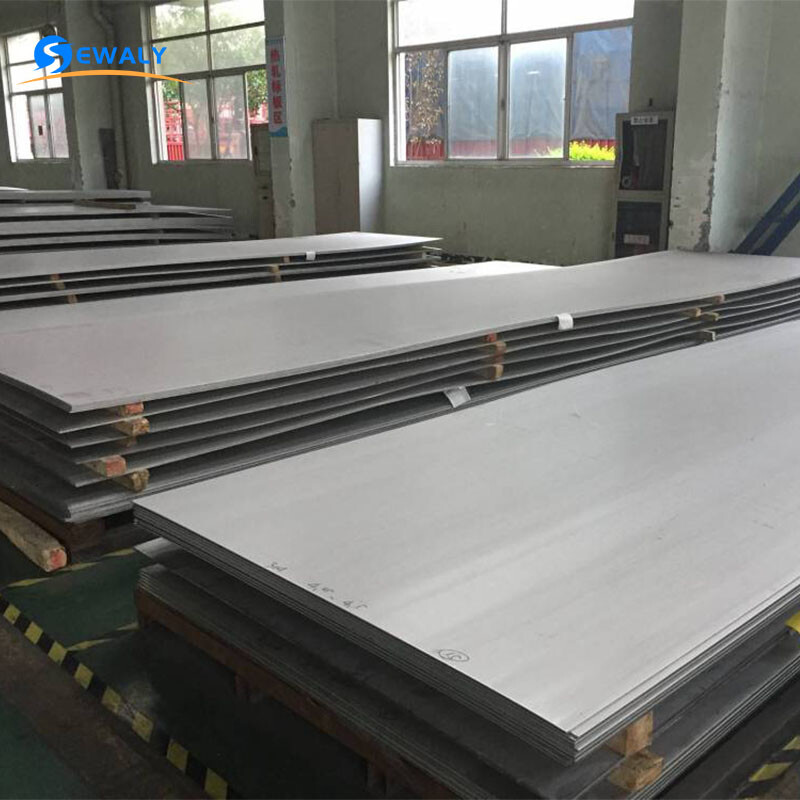

301 Stainless Steel Sheet

Introduction：
1. Low MOQ and Flexible Production Ability.
2. Quick delivery and standard industry exporting package.
3. Best service with quick reply
4. OEM and ODM, welcome customers to visit our factory for better understanding;
5. Value friendship and trustworthy, devote to provide long-term service to our distinguished customers.

Inquiry

Contact us

Product Introduction

301 is a high strength, austenitic stainless steel composed of 7% Nickel and 17% Chromium. this grade of steel is resistant to corrosion and has an attractive surface available in multiple finishes, ideal for structural and architectural applications. 301 stainless steel is highly versatile, often used in the automotive industry for trim, wheel covers, and molding. Despite being resistant to many types of corrosive media, carbide precipitation can occur during welding.

Items	Stainless Steel Coil
Standard	GB/T14976-2002、GB13296-91、GB9948-88、ASTM/ASME A213/SA213、ASTM/ASME A312/SA312、
	ASTM/ASME A269/SA269、DIN 17458-85、DIN 17456-85、JIS G 3459、
	JIS G 3463、JIS G 3448、JIS G 344
Size	Width: 3.5mm～1550mm
	Thickness: 0.025mm～4mm
Industrial process	hot rolled,hot expanded,cold drawn,and hot galvanized
Tolerance	a) Outer Diameter:6-32mm:+/- 0.2mm, 32-38:+/-0.15mm,42-60:+/-0.20mm,60mm:+/-0.25mm
	b) Thickness: +/- 10%
	c) Length: +/- 5mm
Surface	180G, 240G, 320G Satin / Hairline
	400G, 600G Mirror finish
Application	steel bridge,boiler plate,shipbuilding steel,steel armor,automotive steel,
	roof plate,structural Steel,electrical steel etc.
Test	Squash test, extended test, water pressure test, crystal rot test, heat treatment, NDT
Material Composition		201	202	304	316L	430


Chemical Composition	C	≤0.15	≤0.15	≤0.08	≤0.035	≤0.12
	Si	≤1.00	≤1.00	≤1.00	≤1.00	≤1.00
	Mn	5.5-7.5	7.5-10	≤2.00	≤2.00	≤1.00
	P	≤0.06	≤0.06	≤0.045	≤0.045	≤0.040
	S	≤0.03	≤0.03	≤0.030	≤0.030	≤0.030
	Cr	13-15	14-17	18-20	16-18	16-18
	Ni	0.7-1.1	3.5-4.5	8-10.5
	Mo				2.0-3.0
	Material Item		201	202	304	316
Mechanical Property	Tensile Strength		≥535	≥520	≥520	≥520
	Yield Strength		≥245	≥205	≥205	≥205
	Extension		≥30%	≥30%	≥35%	≥35%
	Hardness (HV)		<105	<100	<90	<90
	Extension		≥30%	≥30%	≥35%	≥35%

Stainless steel coil plate – ASTM A240M

Grade	Thickness (mm)	Coil width (mm)	Finish
304/304L	5.0	1500	2B
316/316L	6.0	2000	No. 1
304/304L	8.0	1500	No. 1
316/316L	10.0	2000
	12.0
3CR12	5.0	1250	No. 1

Stainless Steel Plate
Grade	304/304L, 316/316L & 4003/3CR12.
Thickness (mm)	5.0 to 50.0.
Width (mm)	1250 (grade 4003), 1500 & 2000.
Length (mm)	3000, 6000 & customer specific cut-to-length.
Finish	2B (to 8mm) & No.1 (HRAP).
Plasma profiles	To customer drawings.

Application

· Architectural

· Kitchen equipment

· Decorative applications

· Aircraft exhaust manifolds

· Expansion joints

· Furnace parts

· Heating element tubing

· Heat exchangers

· Household appliances

· Metal molding

· Metal trim

· Cabinet hardware

· Hinges

Summary

Foshan Sewaly Steel Co., Ltd. is a large-scale comprehensive processing group mainly engaged in stainless steel coil, stainless steel strip, stainless steel plate and stainless steel pipe. We have been engaged in the stainless steel industry for 13+ years, with a monthly shipment of 5,000+ tons, a standing inventory of 15,000+ tons, and a professional team of 500+ people. The company can provide corresponding certifications according to customer requirements, such as: EN, ASTM/ASME, DIN/JUV, JIS/SUS, etc.

So far, we have the branches located in Shanghai, Jiangsu, Chengdu, Shandong, and formed a Russian team. Meanwhile, we won the first-level agent of Shanxi Taigang STSS, Fujian Hongxin Machinery Co.,Ltd., Posco Stainless Steel Co., Ltd.. The company has expanded its export business and established good cooperative relations with major foreign steel mills. Our partners include: Outokumpu Oyj, Avista Corporation, Nippon Yakin Europe Limited, ATI, JFE Steel Corporation and other companies .
