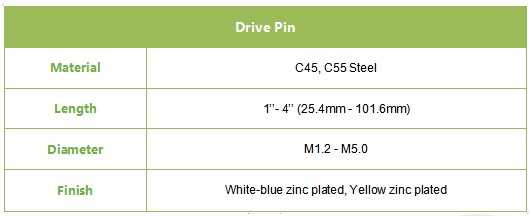

Material: C45, C55 Steel

Head Type: Flat head

Size: 1”-4”(2d-20d)

Head Diameter: 2.8mm-5mm

Length: 22-72mm

Surface Treatment: White-blue zinc plated, yellow zinc plated

Shank Type: Smooth, straight fluted

Packing: 25kg/carton, bulk packing, small box, or by customer’s request

Manufacturers concrete drive pinfor sale:

High strength steel nails.

No external power supply required.

Free Samples and OEM, ODM Service.

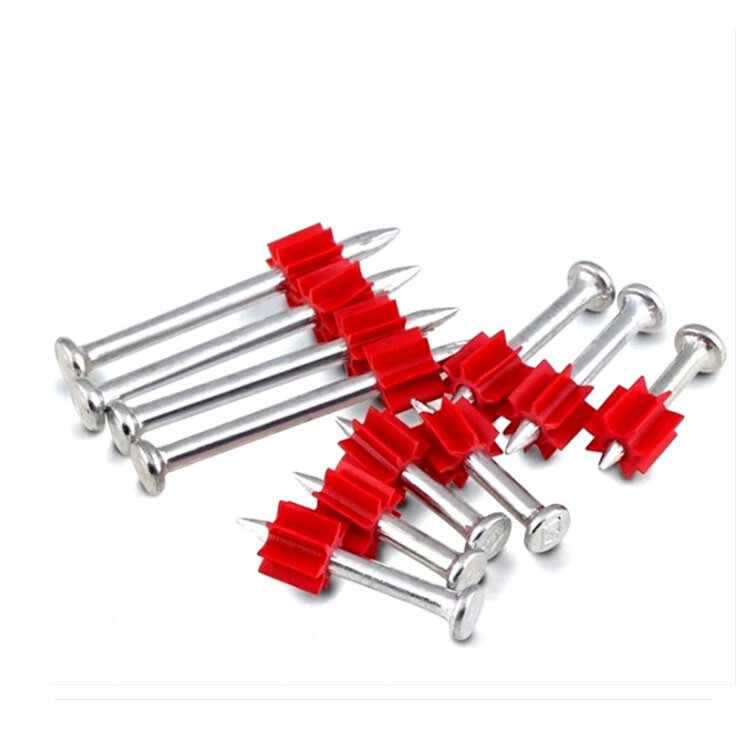

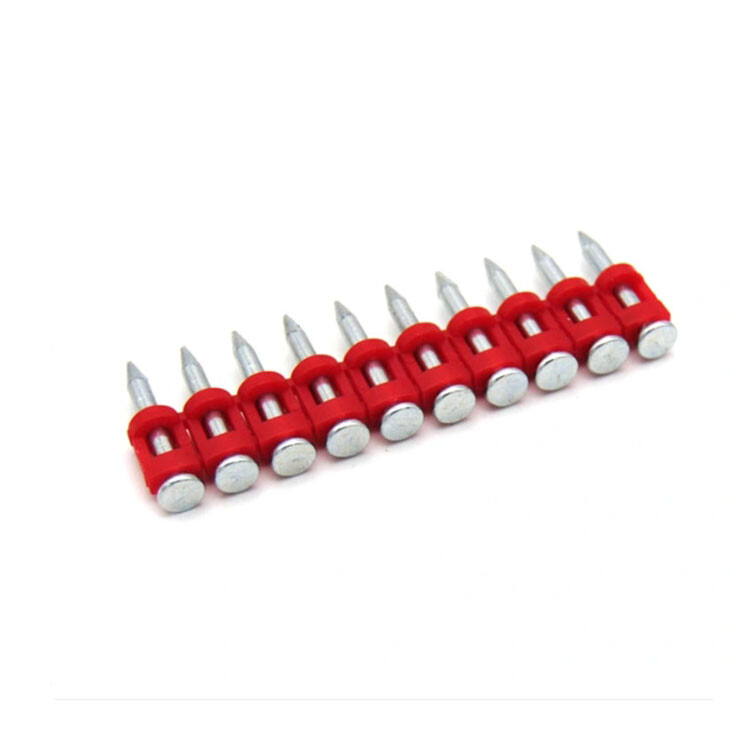

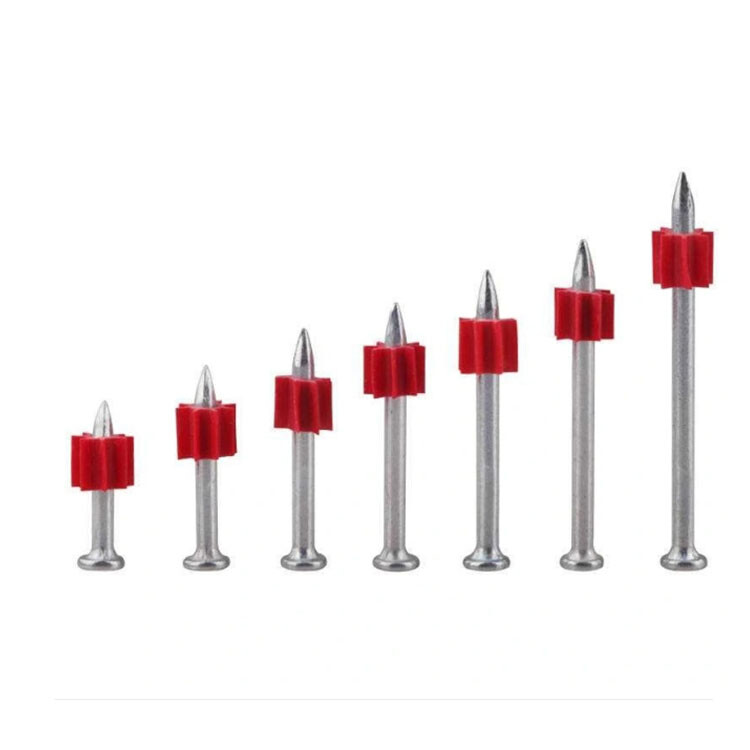

The drive pin(shooting nail) is a kind of high-strength steel nail, and it is also a special nail for the steel pin nailer. Nails usually need to be used in conjunction with a nail gun during operation.

The concrete drive pin is usually composed of a steel nail and a washer, and the gunpowder gas generated by the blank shell fired by the nail gun is used as the power, which can be driven into the interior of concrete or steel plate.

Features

Benefits of shooting nail:

High-quality raw materials: the core hardness is HRC57

Lightweight, fast and requires no external energy

One-handed operation without drilling in advance

Drive pins with washers:the function of the washer is to fix the nail body in the barrel of the nail gun so as not to deflect when firing.

Application

Construction/Indutry/Building/Chemical/Auto

The drive pin is commonly used building and decoration construction tools, and are usually used for fastening connections between light steel and concrete. Such as doors, windows, insulation boards, sound insulation layers, pipes, steel parts, wood products, etc., are firmly connected with the substrate.

Plus, the steel pin nailer doesn’t need to be connected to a power source, so it’s perfect for outdoors without power.
